DAF FAG CF 290 Euro 6 Geesink 22m³
General
| Dimensions (cm) | 960 x 255 x 360 |
| Overall condition | Good |
| Technical condition | Good |
| Optical condition | Good |
Chassis
| Own weight (kg) | 16290 |
| Loading capacity (kg) | 10710 |
| GVW (kg) | 27000 |
| Wheelbase (cm) | 535 |
Powertrain
| Transmission | Automatic |
| Cylinder capacity (cc) | 10837 |
| Engine power (pk) | 286 |
| Engine power (kw) | 210 |

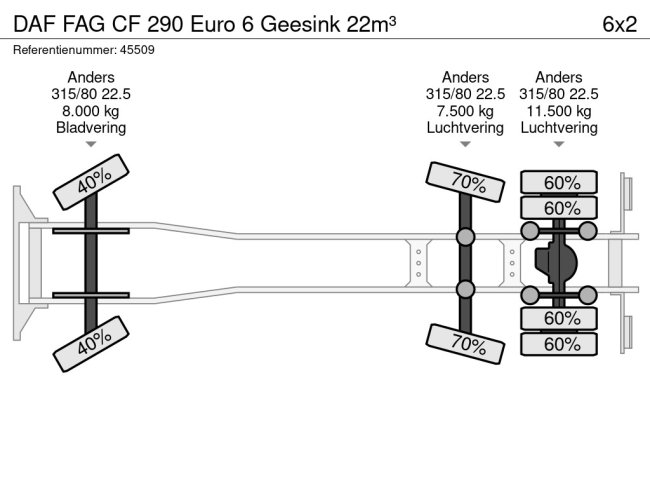

Axle configuration (6x2)
| Axle |
|---|
| Tire size |
| Profile left/right (%) |
| Suspension |
| Maximum axle load (kg) |
| Reduction |
| Axle lift |
| Steering |
| Powered |
| #1 |
|---|
| 315/80 22.5 |
| 40 / 40 |
| Leaf |
| 8000 |
| - |
| #2 |
|---|
| 315/80 22.5 |
| 70 / 70 |
| Air |
| 7500 |
| - |
| #3 |
|---|
| 315/80 22.5 |
| 60 : 60 / 60 : 60 |
| Air |
| 11500 |
| Single |
Drag from right to left
Questions?
Sales
All prices are excluding VAT.
All specifications are subject to change. The given mileage, sizes, weights and other specifications are not legally binding.
Accessoires
Comments
- Superstructure: Geesink (type GPM III), 22m³- Loading: GEC (comb, DIN, Geesink, ETB)
- Storage box
